Problem

Given undirected graph write an algorithm to find out whether graph contains cycle or not.

Examples

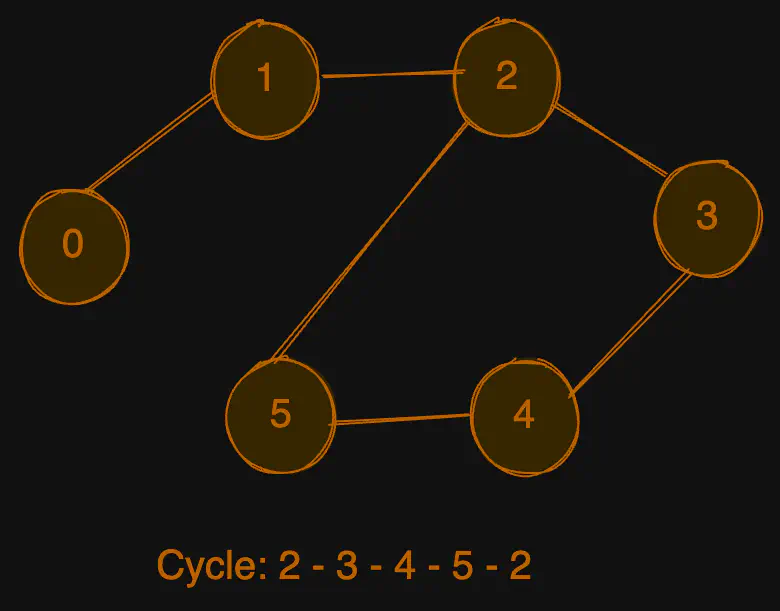

Example 1

1
2
3
Input: n = 6, edges = [[0,1], [1,2], [2,3], [3,4], [4,5], [5,2]]
Output: true
Explanation: The graph has a cycle: 2 -> 3 -> 4 -> 5 -> 2. Starting from node 2, we can traverse to node 3, then to node 4, then to node 5, and finally back to node 2, forming a cycle.

Example 2

1
2
3
Input: n = 4, edges = [[0,1], [1,2], [2,3]]
Output: false
Explanation: This is a simple path 0-1-2-3 with no cycles. Each node is visited at most once, and there are no back edges.

Example 3

1
2
3
Input: n = 3, edges = [[0,1], [1,2], [0,2]]
Output: true
Explanation: Triangle cycle: 0 -> 1 -> 2 -> 0. All three nodes are connected to each other forming a cycle.

Example 4

1
2
3
Input: n = 1, edges = []
Output: false
Explanation: Single node with no edges cannot form a cycle.

Solution

We have seen Detect Cycle in Directed Graph. Now we will solve it for undirected graph. This problem can be solved in multiple ways, like topological sort, DFS, disjoint sets, etc.

Method 1 - DFS and Parent

DFS for a connected graph produces a tree. There is a cycle in a graph only if there is a back edge present in the graph. We have seen Types of Edges in Graph.

A back edge is an edge that is joining a node to itself (self-loop) or one of its ancestor in the tree produced by DFS.  To find the back edge to any of its ancestors keep a visited array and if there is a back edge to any visited node then there is a loop and return true.

Algorithm

  • Do DFS from every vertex (please read DFS for more details)
  • During DFS, for any current vertex ‘u’ (currently visiting vertex) if there is an adjacent vertex ‘v’ that is already visited and ‘v’ is not a direct parent of ‘u’ then there is a cycle in the graph
  • Why we ignore parent:
    • Let’s assume vertices u and v with edge between them: u—-v
    • When we do DFS from u and reach v, then from v we see u as adjacent and already visited
    • But this doesn’t indicate a cycle since u is the parent of v
    • That’s why we ignore the visited vertex if it is the parent of the current vertex

Code

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
class Solution {
public:
    bool hasCycle(int n, vector<vector<int>>& edges) {
        // Build adjacency list
        vector<vector<int>> adj(n);
        for (auto& edge : edges) {
            adj[edge[0]].push_back(edge[1]);
            adj[edge[1]].push_back(edge[0]);
        }

        vector<bool> visited(n, false);

        // Check each component
        for (int i = 0; i < n; i++) {
            if (!visited[i]) {
                if (dfs(i, -1, adj, visited)) {
                    return true;
                }
            }
        }

        return false;
    }

private:
    bool dfs(int u, int parent, vector<vector<int>>& adj, vector<bool>& visited) {
        visited[u] = true;

        // Visit all adjacent vertices
        for (int v : adj[u]) {
            if (!visited[v]) {
                // If not visited, recurse
                if (dfs(v, u, adj, visited)) {
                    return true;
                }
            } else if (v != parent) {
                // If visited and not parent, cycle found
                return true;
            }
        }

        return false;
    }
};
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
class Solution {
    public boolean hasCycle(int n, int[][] edges) {
        // Build adjacency list
        List<List<Integer>> adj = new ArrayList<>();
        for (int i = 0; i < n; i++) {
            adj.add(new ArrayList<>());
        }

        for (int[] edge : edges) {
            adj.get(edge[0]).add(edge[1]);
            adj.get(edge[1]).add(edge[0]);
        }

        boolean[] visited = new boolean[n];

        // Check each component
        for (int i = 0; i < n; i++) {
            if (!visited[i]) {
                if (dfs(i, -1, adj, visited)) {
                    return true;
                }
            }
        }

        return false;
    }

    private boolean dfs(int u, int parent, List<List<Integer>> adj, boolean[] visited) {
        visited[u] = true;

        // Visit all adjacent vertices
        for (int v : adj.get(u)) {
            if (!visited[v]) {
                // If not visited, recurse
                if (dfs(v, u, adj, visited)) {
                    return true;
                }
            } else if (v != parent) {
                // If visited and not parent, cycle found
                return true;
            }
        }

        return false;
    }
}
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
class Solution:
    def has_cycle(self, n: int, edges: List[List[int]]) -> bool:
        # Build adjacency list
        adj = [[] for _ in range(n)]
        for u, v in edges:
            adj[u].append(v)
            adj[v].append(u)

        visited = [False] * n

        # Check each component
        for i in range(n):
            if not visited[i]:
                if self._dfs(i, -1, adj, visited):
                    return True

        return False

    def _dfs(self, u: int, parent: int, adj: List[List[int]], visited: List[bool]) -> bool:
        visited[u] = True

        # Visit all adjacent vertices
        for v in adj[u]:
            if not visited[v]:
                # If not visited, recurse
                if self._dfs(v, u, adj, visited):
                    return True
            elif v != parent:
                # If visited and not parent, cycle found
                return True

        return False

Complexity

  • ⏰ Time complexity: O(V + E), where V is the number of vertices and E is the number of edges. We visit each vertex once and traverse each edge twice (once from each endpoint)
  • 🧺 Space complexity: O(V + E), for the adjacency list representation and the recursion stack which can go up to O(V) in the worst case

Method 2 - BFS and Parent Tracking

Similar to DFS approach, we can use BFS to detect cycles in an undirected graph. The key insight is the same: if we encounter a visited vertex that is not the direct parent of the current vertex, then we have found a cycle.

Algorithm

  • Use BFS from every unvisited vertex
  • For each vertex, keep track of its parent in the BFS tree
  • During BFS, if we encounter an adjacent vertex that is already visited and is not the parent of the current vertex, then there is a cycle
  • Use a queue to store pairs of (vertex, parent) for BFS traversal

Code

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
class Solution {
public:
    bool hasCycle(int n, vector<vector<int>>& edges) {
        // Build adjacency list
        vector<vector<int>> adj(n);
        for (auto& edge : edges) {
            adj[edge[0]].push_back(edge[1]);
            adj[edge[1]].push_back(edge[0]);
        }

        vector<bool> visited(n, false);

        // Check each component
        for (int i = 0; i < n; i++) {
            if (!visited[i]) {
                if (bfs(i, adj, visited)) {
                    return true;
                }
            }
        }

        return false;
    }

private:
    bool bfs(int start, vector<vector<int>>& adj, vector<bool>& visited) {
        queue<pair<int, int>> q; // {vertex, parent}
        q.push({start, -1});
        visited[start] = true;

        while (!q.empty()) {
            auto [u, parent] = q.front();
            q.pop();

            // Visit all adjacent vertices
            for (int v : adj[u]) {
                if (!visited[v]) {
                    // If not visited, add to queue
                    visited[v] = true;
                    q.push({v, u});
                } else if (v != parent) {
                    // If visited and not parent, cycle found
                    return true;
                }
            }
        }

        return false;
    }
};
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
class Solution {
    public boolean hasCycle(int n, int[][] edges) {
        // Build adjacency list
        List<List<Integer>> adj = new ArrayList<>();
        for (int i = 0; i < n; i++) {
            adj.add(new ArrayList<>());
        }

        for (int[] edge : edges) {
            adj.get(edge[0]).add(edge[1]);
            adj.get(edge[1]).add(edge[0]);
        }

        boolean[] visited = new boolean[n];

        // Check each component
        for (int i = 0; i < n; i++) {
            if (!visited[i]) {
                if (bfs(i, adj, visited)) {
                    return true;
                }
            }
        }

        return false;
    }

    private boolean bfs(int start, List<List<Integer>> adj, boolean[] visited) {
        Queue<int[]> queue = new LinkedList<>(); // {vertex, parent}
        queue.offer(new int[]{start, -1});
        visited[start] = true;

        while (!queue.isEmpty()) {
            int[] current = queue.poll();
            int u = current[0];
            int parent = current[1];

            // Visit all adjacent vertices
            for (int v : adj.get(u)) {
                if (!visited[v]) {
                    // If not visited, add to queue
                    visited[v] = true;
                    queue.offer(new int[]{v, u});
                } else if (v != parent) {
                    // If visited and not parent, cycle found
                    return true;
                }
            }
        }

        return false;
    }
}
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
from collections import deque
from typing import List

class Solution:
    def has_cycle(self, n: int, edges: List[List[int]]) -> bool:
        # Build adjacency list
        adj = [[] for _ in range(n)]
        for u, v in edges:
            adj[u].append(v)
            adj[v].append(u)

        visited = [False] * n

        # Check each component
        for i in range(n):
            if not visited[i]:
                if self._bfs(i, adj, visited):
                    return True

        return False

    def _bfs(self, start: int, adj: List[List[int]], visited: List[bool]) -> bool:
        queue = deque([(start, -1)])  # (vertex, parent)
        visited[start] = True

        while queue:
            u, parent = queue.popleft()

            # Visit all adjacent vertices
            for v in adj[u]:
                if not visited[v]:
                    # If not visited, add to queue
                    visited[v] = True
                    queue.append((v, u))
                elif v != parent:
                    # If visited and not parent, cycle found
                    return True

        return False

Complexity

  • ⏰ Time complexity: O(V + E), where V is the number of vertices and E is the number of edges. We visit each vertex once and traverse each edge twice
  • 🧺 Space complexity: O(V + E), for the adjacency list representation and the BFS queue which can hold up to O(V) elements

Method 3 - Union Find (Disjoint Set)

Union Find (also known as Disjoint Set Union) is another efficient approach to detect cycles in undirected graphs. The key insight is that if two vertices of an edge are already in the same connected component (same set), then adding this edge will create a cycle.

Algorithm

  • Initialize each vertex as its own parent (each vertex is in its own set)
  • For each edge (u, v):
    • Find the root/representative of vertex u
    • Find the root/representative of vertex v
    • If both vertices have the same root, they are already connected, so adding this edge creates a cycle
    • Otherwise, union the two sets by making one root the parent of the other

Example Walkthrough

Let’s trace through Example 1: n = 6, edges = [[0,1], [1,2], [2,3], [3,4], [4,5], [5,2]]

Initial state: Each vertex is its own parent

1
parent: [0, 1, 2, 3, 4, 5]

Edge [0,1]: Different sets, union them

1
parent: [1, 1, 2, 3, 4, 5]  // 0 joins 1's set

Edge [1,2]: Different sets, union them

1
parent: [1, 2, 2, 3, 4, 5]  // 1 joins 2's set

Edge [2,3]: Different sets, union them

1
parent: [1, 2, 3, 3, 4, 5]  // 2 joins 3's set

Edge [3,4]: Different sets, union them

1
parent: [1, 2, 3, 4, 4, 5]  // 3 joins 4's set

Edge [4,5]: Different sets, union them

1
parent: [1, 2, 3, 4, 5, 5]  // 4 joins 5's set

Edge [5,2]: Check if 5 and 2 are in same set

  • Root of 5: 5
  • Root of 2: 2 → 3 → 4 → 5 (following parent chain)
  • Both have root 5, so they’re already connected! Cycle detected!

Code

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
class UnionFind {
private:
    vector<int> parent;
    vector<int> rank;

public:
    UnionFind(int n) {
        parent.resize(n);
        rank.resize(n, 0);
        for (int i = 0; i < n; i++) {
            parent[i] = i;
        }
    }

    int find(int x) {
        if (parent[x] != x) {
            parent[x] = find(parent[x]); // Path compression
        }
        return parent[x];
    }

    bool unite(int x, int y) {
        int rootX = find(x);
        int rootY = find(y);

        if (rootX == rootY) {
            return false; // Already in same set, cycle detected
        }

        // Union by rank
        if (rank[rootX] < rank[rootY]) {
            parent[rootX] = rootY;
        } else if (rank[rootX] > rank[rootY]) {
            parent[rootY] = rootX;
        } else {
            parent[rootY] = rootX;
            rank[rootX]++;
        }

        return true;
    }
};

class Solution {
public:
    bool hasCycle(int n, vector<vector<int>>& edges) {
        UnionFind uf(n);

        for (auto& edge : edges) {
            if (!uf.unite(edge[0], edge[1])) {
                return true; // Cycle detected
            }
        }

        return false;
    }
};
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
class UnionFind {
    private int[] parent;
    private int[] rank;

    public UnionFind(int n) {
        parent = new int[n];
        rank = new int[n];
        for (int i = 0; i < n; i++) {
            parent[i] = i;
            rank[i] = 0;
        }
    }

    public int find(int x) {
        if (parent[x] != x) {
            parent[x] = find(parent[x]); // Path compression
        }
        return parent[x];
    }

    public boolean unite(int x, int y) {
        int rootX = find(x);
        int rootY = find(y);

        if (rootX == rootY) {
            return false; // Already in same set, cycle detected
        }

        // Union by rank
        if (rank[rootX] < rank[rootY]) {
            parent[rootX] = rootY;
        } else if (rank[rootX] > rank[rootY]) {
            parent[rootY] = rootX;
        } else {
            parent[rootY] = rootX;
            rank[rootX]++;
        }

        return true;
    }
}

class Solution {
    public boolean hasCycle(int n, int[][] edges) {
        UnionFind uf = new UnionFind(n);

        for (int[] edge : edges) {
            if (!uf.unite(edge[0], edge[1])) {
                return true; // Cycle detected
            }
        }

        return false;
    }
}
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
class UnionFind:
    def __init__(self, n: int):
        self.parent = list(range(n))
        self.rank = [0] * n

    def find(self, x: int) -> int:
        if self.parent[x] != x:
            self.parent[x] = self.find(self.parent[x])  # Path compression
        return self.parent[x]

    def unite(self, x: int, y: int) -> bool:
        root_x = self.find(x)
        root_y = self.find(y)

        if root_x == root_y:
            return False  # Already in same set, cycle detected

        # Union by rank
        if self.rank[root_x] < self.rank[root_y]:
            self.parent[root_x] = root_y
        elif self.rank[root_x] > self.rank[root_y]:
            self.parent[root_y] = root_x
        else:
            self.parent[root_y] = root_x
            self.rank[root_x] += 1

        return True

class Solution:
    def has_cycle(self, n: int, edges: List[List[int]]) -> bool:
        uf = UnionFind(n)

        for u, v in edges:
            if not uf.unite(u, v):
                return True  # Cycle detected

        return False

Complexity

  • ⏰ Time complexity: O(E × α(V)), where E is the number of edges, V is the number of vertices, and α is the inverse Ackermann function. With path compression and union by rank, α(V) is effectively constant for all practical purposes, making it nearly O(E)
  • 🧺 Space complexity: O(V), for the parent and rank arrays in the Union Find data structure

Key Optimizations

  1. Path Compression: During find operation, make every node point directly to the root
  2. Union by Rank: Always attach the shorter tree under the root of the taller tree to keep trees flat
