Problem

Suppose we have an array:

+-------+-----+-----+-----+-----+-----+-----+
| Index |  0  |  1  |  2  |  3  |  4  |  5  |
+-------+-----+-----+-----+-----+-----+-----+
| Value |  -1 |  3  |  4  |  0  |  2  |  1  |
+-------+-----+-----+-----+-----+-----+-----+

We want to perform some query on this array. For example:

  • What is the minimum from index-2 to index-4? -> 0
  • What is the maximum from index-0 to index-3? -> 4
  • What is the summation from index-1 to index-5? -> 10

Solution

Method 1 - Brute Force

We could traverse the array from the starting index to the finishing index and answer our query. In this approach, each query takes O(n) time where n is the difference between the starting index and finishing index. But what if there are millions of numbers and millions of queries? For m queries, it would take O(mn) time. So for 10⁵ values in our array, if we conduct 10⁵ queries, for worst case, we’ll need to traverse 10¹⁰ items.

Method 2 - Dynamic Programming

We can create a 6X6 matrix to store the values for different ranges. For lookup[i][j] would store the min value from index i to index j.

Time complexity fo building this matrix is O(n^2) and space complexity is also O(n^2). Then RMQ will take O(1).

For range minimum query(RMQ), our array would look like:

              0     1     2     3     4     5
     +-----+-----+-----+-----+-----+-----+-----+
     |     |  -1 |  3  |  4  |  0  |  2  |  1  |
     +-----+-----+-----+-----+-----+-----+-----+
  0  |  -1 |  -1 |  -1 |  -1 |  -1 |  -1 |  -1 |
     +-----+-----+-----+-----+-----+-----+-----+
  1  |  3  |     |  3  |  3  |  0  |  0  |  0  |
     +-----+-----+-----+-----+-----+-----+-----+
  2  |  4  |     |     |  4  |  0  |  0  |  0  |
     +-----+-----+-----+-----+-----+-----+-----+
  3  |  0  |     |     |     |  0  |  0  |  0  |
     +-----+-----+-----+-----+-----+-----+-----+
  4  |  2  |     |     |     |     |  2  |  1  |
     +-----+-----+-----+-----+-----+-----+-----+
  5  |  1  |     |     |     |     |     |  1  |
     +-----+-----+-----+-----+-----+-----+-----+

For example: The minimum from index-2 to index-4  is Matrix[2][4] = 0.

Code for preprocessing:

public void preprocess(int arr[]) {
	int n = array.length;
	int[][] lookup = new int[n][n];
	// diagonal value have range 1, so they 1 element which is min
	for (int i = 0; i<n; i++) {
		lookup[i][i] = i;
	}

	// Fill rest of the entries in bottom up manner
	for (int i = 0; i<n; i++) {
		for (int j = i + 1; j<n; j++)

			// To find minimum of [0,4],
			// we compare minimum of
			// arr[0][3] with arr[4].
			if (lookup[i][j - 1]<arr[j]) {
				lookup[i][j] = lookup[i][j - 1];
			}
		else {
			lookup[i][j] = arr[j];
		}
	}
}

Now, when we get the query:

public int getMin(int l, int r) {
	return preprocess[l][r]; // O(1)
}

Method 3 - Using Segment Tree 🏆

We can use segment tree datastructure. It allows querying which of the stored segments contain a given point. It takes O(n) time to build a segment tree, it takes O(n) space to maintain it and it answers a query in O(logn) time.

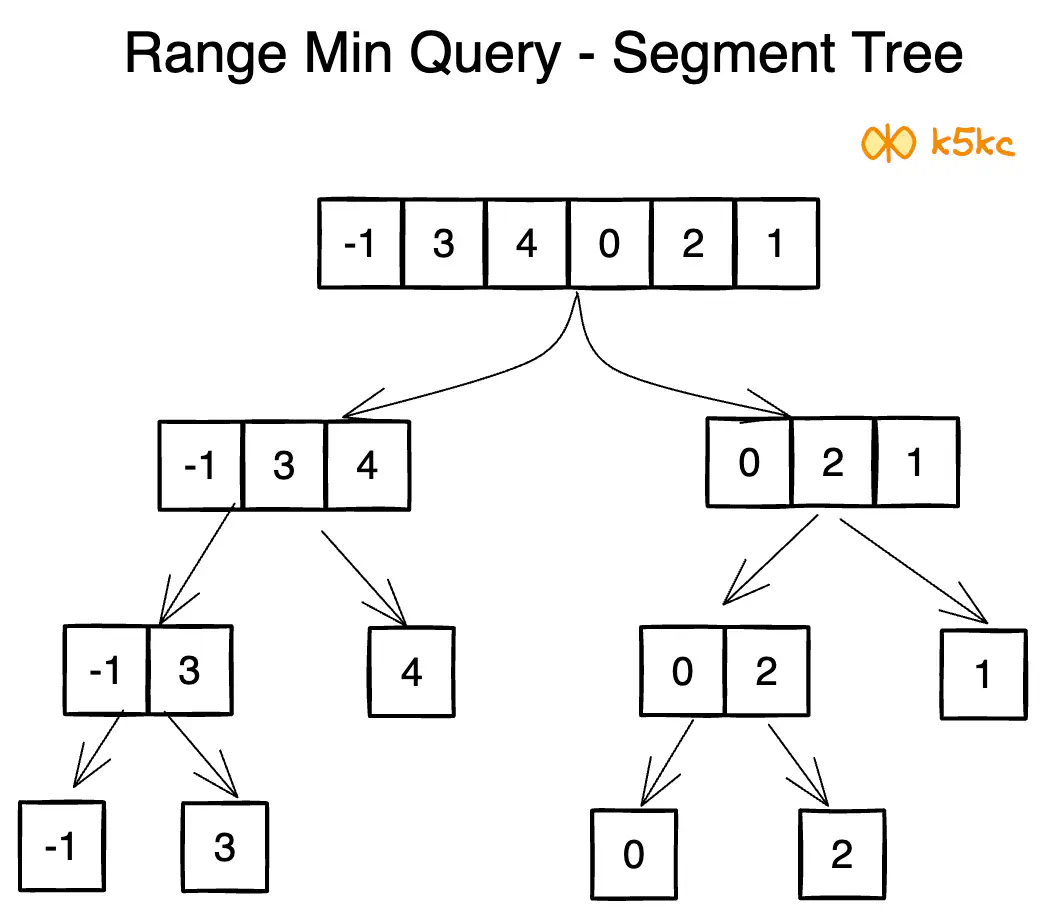

Segment tree is a binary tree and the elements of the given array will be the leaves of that tree. We’ll create the segment tree by dividing the array in half till we reach a single element. So our division would provide us with:

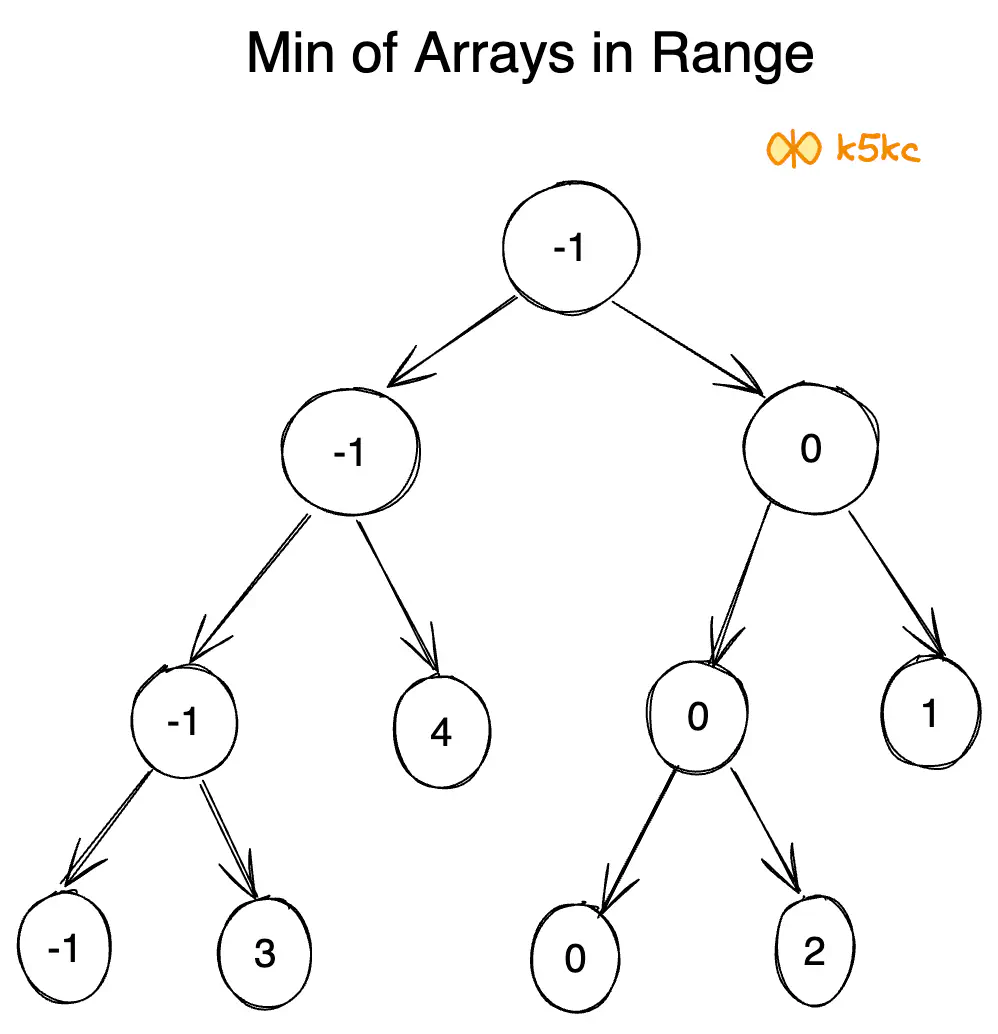

Now if we replace the non-leaf nodes with the minimum value of their leaves, we get:

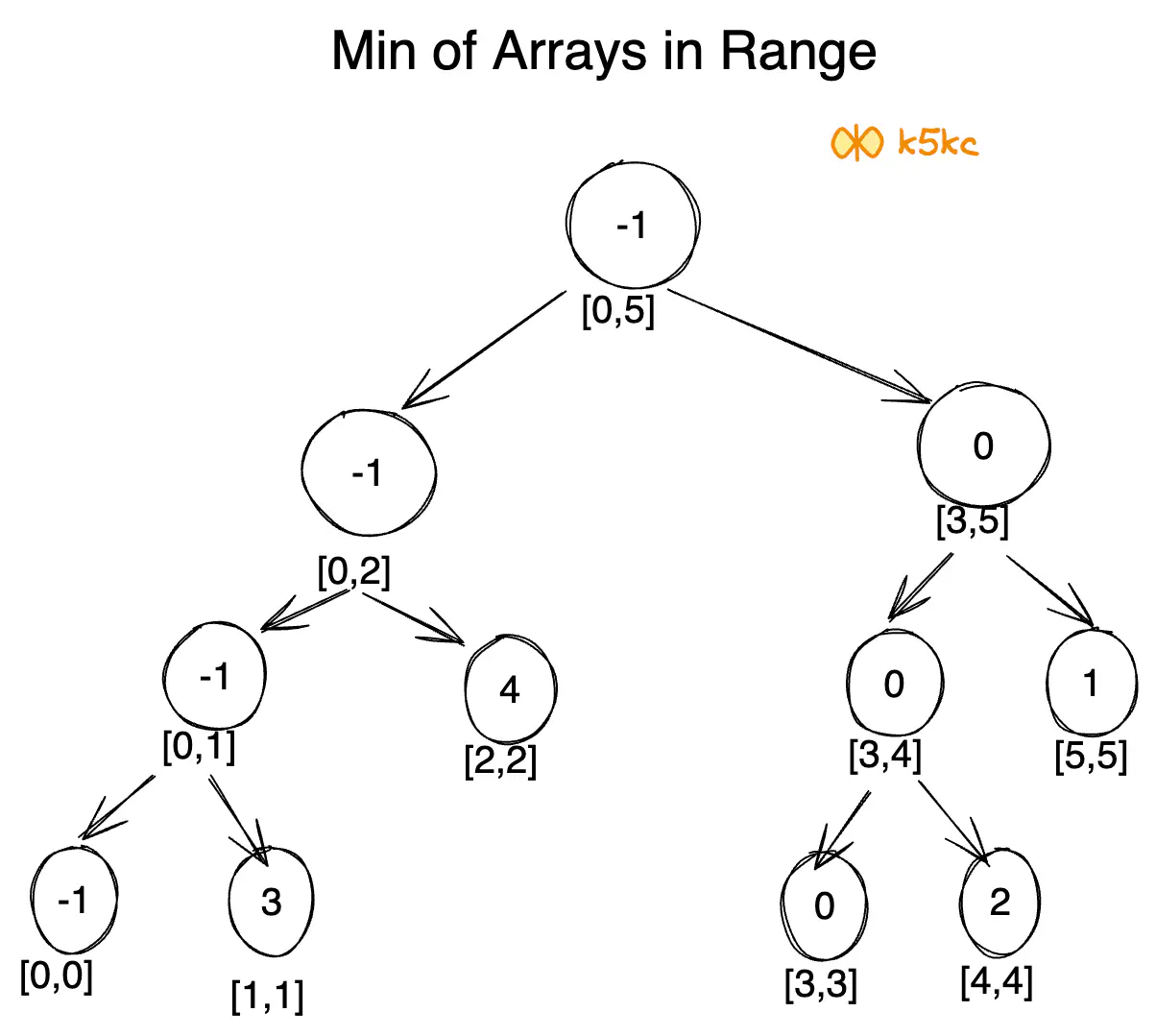

So this is our segment tree. We can notice that, the root node contains the minimum value of the whole array(range [0,5]), its left child contains the minimum value of our left array(range [0,2]), right child contains the minimum value of our right array(range [3,5]) and so on. The leaf nodes contain minimum value of each individual points. We get:

Now let’s do a range query on this tree. To do a range query, we need to check three conditions:

  • Partial Overlap: We check both leaves.
  • Total Overlap: We return the value stored in the node.
  • No Overlap: We return a very large value or infinity.

Let’s say, we want to check range [2,4], that means we want to find the minimum from index-2 to 4. We’ll start from the root and check if the range in our nodes is overlapped by our query range or not. Here,

  • [2,4] doesn’t completely overlap [0,5]. So we’ll check both directions.
    • At left subtree, [2,4] partially overlaps [0,2]. We’ll check both directions.
      • At left subtree, [2,4] does not overlap [0,1], so this is not going to contribute to our answer. We return infinity.
      • At right subtree, [2,4] totally overlaps [2,2]. We return 4. The minimum of these two returned values(4, infinity) is 4. We get 4 from this portion.
    • At right subtree, [2,4] partially overlaps. So we’ll check both directions.
      • At left subtree, [2,4] completely overlaps [3,4]. We return 0.
      • At right subtree, [2,4] doesn’t overlap [5,5]. We return infinity. The minimum of these two returned values(0, infinity) is 0. We get 0 from this portion.
  • The minimum of the returned values(4,0) is 0. This is our desired minimum in range [2,4].

Now we can check that, no matter what our query is, it would take maximum 4 steps to find the desired value from this segment tree.

Code

public class RangeMinQuery {
    private final int n;
    private final int[] segTree;

    public RangeMinQuery(int n) {
        this.n = n;
        segTree = new int[2 * n];
    }

    void build(int[] a) {

        // assign values to leaves of the segment tree
        for (int i = 0; i < n; i++) {
            segTree[n + i] = a[i];
        }

        /*
         * assign values to internal nodes
         * to compute minimum in a given range
         */
        for (int i = n - 1; i >= 1; i--) {
            segTree[i] = Math.min(segTree[2 * i], segTree[2 * i + 1]);
        }
    }

    void update(int pos, int value) {

        // change the index to leaf node first
        pos += n;

        // update the value at the leaf node
        // at the exact index
        segTree[pos] = value;

        while (pos > 1) {

            // move up one level at a time in the tree
            pos >>= 1;

            // update the values in the nodes in
            // the next higher level
            segTree[pos] = Math.min(segTree[2 * pos],
                    segTree[2 * pos + 1]);
        }
    }

    int query(int left, int right) {

        /*
         * Basically the left and right indices will move
         * towards right and left respectively and with
         * every each next higher level and compute the
         * minimum at each height. */
        // change the index to leaf node first
        left += n;
        right += n;

        // initialize minimum to a very high value
        int mi = (int) 1e9;

        while (left < right) {

            // if left index is odd
            if ((left & 1) == 1) {
                mi = Math.min(mi, segTree[left]);

                // make left index even
                left++;
            }

            // if right index is odd
            if ((right & 1) == 1) {

                // make right index even
                right--;

                mi = Math.min(mi, segTree[right]);
            }

            // move to the next higher level
            left /= 2;
            right /= 2;
        }
        return mi;
    }

    // Driver Code
    public static void main(String[] args) {
        int[] a = {2, 6, 10, 4, 7, 28, 9, 11, 6, 33};
        RangeMinQuery rmq = new RangeMinQuery(a.length);

        /*
         * Construct the segment tree by assigning
         * the values to the internal nodes
         */
        rmq.build(a);

        // compute minimum in the range left to right
        int left = 0, right = 5;
        System.out.printf("Minimum in range %d to %d is %d\n",
                left, right, rmq.query(
                        left, right + 1));

        // update the value of index 3 to 1
        int index = 3, value = 1;

        // a[3] = 1;
        // Contents of array : {2, 6, 10, 1, 7, 28, 9, 11, 6, 33}
        rmq.update(index, value); // point update

        // compute minimum in the range left to right
        left = 2;
        right = 6;
        System.out.printf("Minimum in range %d to %d is %d\n",
                left, right, rmq.query(
                        left, right + 1));
    }
}
