Solve Magnet Puzzle

Updated: Oct 10, 2025

Problem

The Magnet ("Magnets") puzzle involves placing domino-shaped magnets (each with a + and - pole) into predefined paired slots on a rectangular grid so that all given numerical constraints are satisfied.

Board cells are partitioned into domino slots (horizontal or vertical). Each domino must be assigned either (+, -) or (-, +) according to orientation, or left unused (X X). Additional global constraints:

  1. Row / column counts: Arrays top[], bottom[], left[], right[] specify how many + or - signs must appear in each column or row (with -1 meaning unconstrained). top[j] counts + in column j; bottom[j] counts - in column j; similarly for left[i] (pluses in row i) and right[i] (minuses in row i).
  2. Adjacency: No two orthogonally adjacent cells may contain the same sign (+ next to + or - next to -). Diagonals are allowed to match.
  3. Domino structure: Orientation matrix rules gives for each slot-end one of L, R, T, B (left/right or top/bottom half); valid dominoes are (L,R) horizontally adjacent or (T,B) vertically adjacent pairs.
  4. Each domino slot may be unused (both cells marked X).

Goal: Assign polarities (or unused) to all slots so that all constraints hold; output one valid filled board (or report unsolvable).

Examples

Example 1

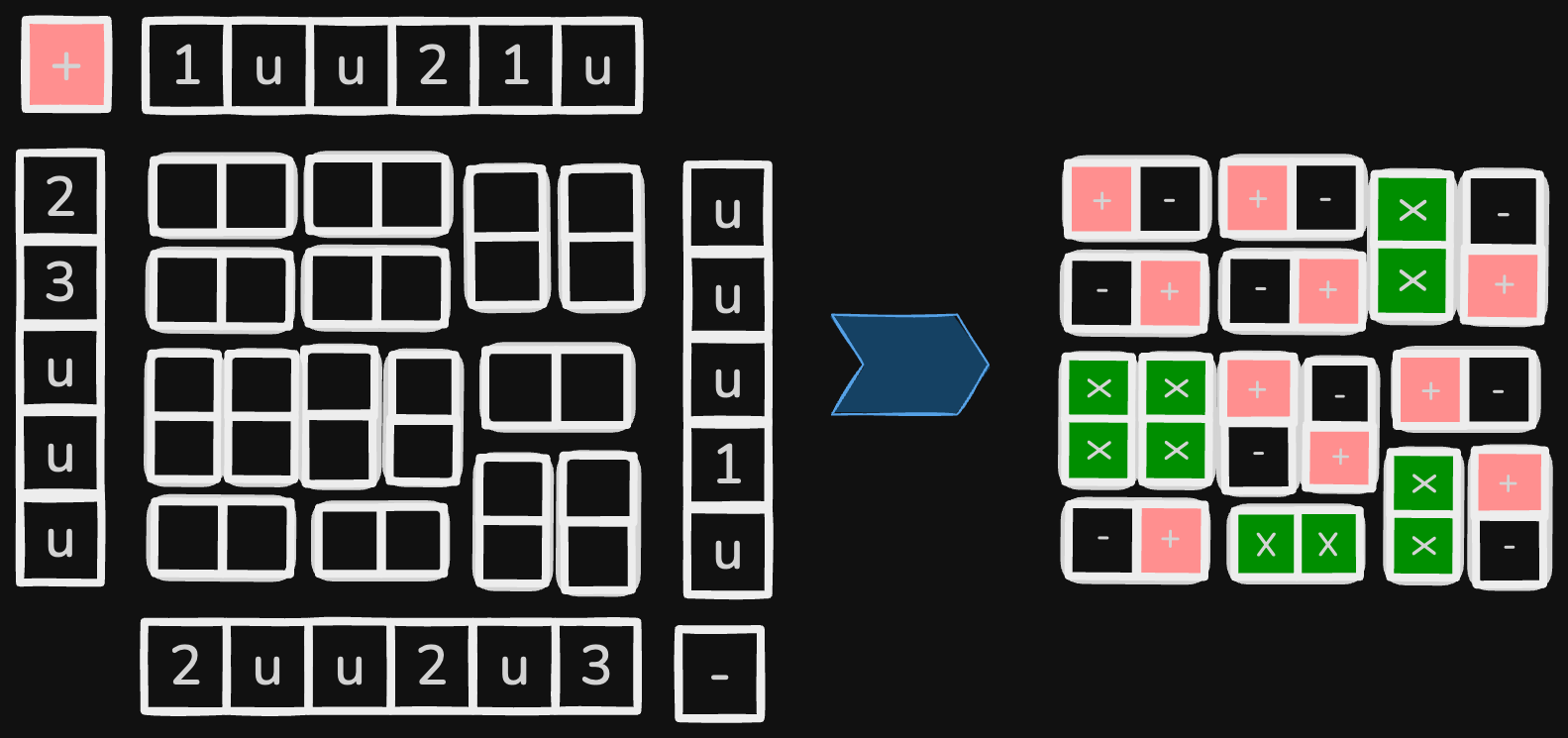

solve-magnet-puzzle-eg1.excalidraw

Input : M = 5, N = 6
 top[] = [1, -1, -1, 2, 1, -1]
 bottom[] = [2, -1, -1, 2, -1, 3]
 left[] = [2, 3, -1, -1, -1]
 right[] = [-1, -1, -1, 1, -1]
 rules[][] = [[L, R, L, R, T, T],
 [L, R, L, R, B, B],
 [T, T, T, T, L, R],
 [B, B, B, B, T, T],
 [L, R, L, R, B, B]];
Output :
 + - + - X -
 - + - + X +
 X X + - + -
 X X - + X +
 - + X X X -

Example 2

Input : M = 4, N = 3
 top[] = [2, -1, -1]
 bottom[] = [-1, -1, 2]
 left[] = [-1, -1, 2, -1]
 right[] = [0, -1, -1, -1]
 rules[][] = [[T, T, T],
 [B, B, B],
 [T, L, R],
 [B, L, R]];
Output :
 + X +
 – X –
 + – +
 – + –

Constraints

  • Typical puzzle sizes: M, N <= 8..10 (practical backtracking limit)
  • Number of domino slots derived from rules layout.
  • Sum feasibility: For each row/col with constraint c for + (or -), must have enough available cells in that row/col to reach c.

Solution

Method 1 - Backtracking with Incremental Constraint Pruning

Intuition

The search space is all assignments of each domino slot to one of three states: (+, -), (-, +) or unused (X, X). We prune early when:

  1. A row/col already exceeds its + / - quota.
  2. Remaining unfilled cells in a row/col are insufficient to reach a still-needed quota.
  3. Adjacency rule would be violated by placing a polarity at a cell.

By scanning the grid cell-by-cell in a deterministic order and branching only at canonical slot starts (L or T), we avoid duplicate work.

Approach

  1. Pre-parse rules to identify domino slot starts (cells marked L or T).
  2. Maintain counters:
    • plusRow[i], minusRow[i], plusCol[j], minusCol[j].
  3. Recursive function dfs(idx) where idx enumerates domino slots:
    • For each slot (two coordinates a, b), try states:
    • (+, -) if both legal.
    • (-, +) if both legal.
    • X X (skip) always legal (but keep for solution existence; can be pruned if quotas require filling).
    • Before recursing, check row/col quota feasibility (no overfill; capacity remaining sufficient).
  4. Stop at first complete assignment satisfying all exact quotas (where specified; unconstrained quotas ignored).
  5. Use adjacency checks on-the-fly (constant time around the two modified cells).

Pseudocode

build list slots from rules where cell is 'L' or 'T'
initialize counts to 0; fill quotas arrays top, bottom, left, right

def feasible_after(place):
  # check not exceeding quota and enough remaining cells to still meet quota
  return rows_ok and cols_ok

def try_state(slot, pattern):  # pattern in {(+, -), (-, +), (X, X)}
  check adjacency for each non-X cell
  apply updates to board + counters
  if feasible_after: dfs(next)
  revert

def dfs(k):
  if k == len(slots): return all exact quotas satisfied
  slot = slots[k]
  for pattern in [(+, -), (-, +), (X,X)]:
    try_state(slot, pattern)
  return false

dfs(0)

Code

C++
#include <array>

// Refactored: provides a Solution class returning the solved board instead of printing.
// Google style: types in PascalCase, functions/variables in lowerCamelCase, no using-directives.

class Solution {
 public:
  static constexpr int kRows = 5;
  static constexpr int kCols = 6;
  using Board = std::array<std::array<char, kCols>, kRows>;

  Board solve(const std::array<int, kCols>& topQuota,
              const std::array<int, kCols>& bottomQuota,
              const std::array<int, kRows>& leftQuota,
              const std::array<int, kRows>& rightQuota,
              const Board& slotRules) {
    Board board{};
    for (int r = 0; r < kRows; ++r) {
      for (int c = 0; c < kCols; ++c) {
        board[r][c] = 'X';
      }
    }
    backtrack(board, 0, 0, topQuota, bottomQuota, leftQuota, rightQuota, slotRules);
    return board; // If unsolvable, remains 'X'.
  }

 private:
  bool backtrack(Board& board, int row, int col,
                 const std::array<int, kCols>& topQuota,
                 const std::array<int, kCols>& bottomQuota,
                 const std::array<int, kRows>& leftQuota,
                 const std::array<int, kRows>& rightQuota,
                 const Board& slotRules) {
    if (row >= kRows - 1 && col >= kCols - 1) {
      return validate(board, topQuota, bottomQuota, leftQuota, rightQuota);
    }
    if (col >= kCols) {
      col = 0;
      ++row;
    }
    if (row >= kRows) {
      return false;
    }
    char cell = slotRules[row][col];
    if (cell == 'R' || cell == 'B') {
      return backtrack(board, row, col + 1, topQuota, bottomQuota, leftQuota, rightQuota, slotRules);
    }

    // Horizontal domino start (L,R)
    if (cell == 'L' && col + 1 < kCols && slotRules[row][col + 1] == 'R') {
      tryAssign(board, row, col, row, col + 1, '+', '-', topQuota, bottomQuota, leftQuota, rightQuota, slotRules);
      tryAssign(board, row, col, row, col + 1, '-', '+', topQuota, bottomQuota, leftQuota, rightQuota, slotRules);
    }
    // Vertical domino start (T,B)
    if (cell == 'T' && row + 1 < kRows && slotRules[row + 1][col] == 'B') {
      tryAssign(board, row, col, row + 1, col, '+', '-', topQuota, bottomQuota, leftQuota, rightQuota, slotRules);
      tryAssign(board, row, col, row + 1, col, '-', '+', topQuota, bottomQuota, leftQuota, rightQuota, slotRules);
    }
    // Option: leave cells unused ('X'), move forward.
    return backtrack(board, row, col + 1, topQuota, bottomQuota, leftQuota, rightQuota, slotRules);
  }

  void tryAssign(Board& board, int r1, int c1, int r2, int c2,
                 char ch1, char ch2,
                 const std::array<int, kCols>& topQuota,
                 const std::array<int, kCols>& bottomQuota,
                 const std::array<int, kRows>& leftQuota,
                 const std::array<int, kRows>& rightQuota,
                 const Board& slotRules) {
    if (!isSafe(board, r1, c1, ch1, topQuota, bottomQuota, leftQuota, rightQuota) ||
        !isSafe(board, r2, c2, ch2, topQuota, bottomQuota, leftQuota, rightQuota)) {
      return;
    }
    board[r1][c1] = ch1;
    board[r2][c2] = ch2;
    if (backtrack(board, r1, c1 + 1, topQuota, bottomQuota, leftQuota, rightQuota, slotRules)) {
      return; // success path retains assignment
    }
    board[r1][c1] = 'X';
    board[r2][c2] = 'X';
  }

  bool isSafe(const Board& board, int row, int col, char ch,
              const std::array<int, kCols>& topQuota,
              const std::array<int, kCols>& bottomQuota,
              const std::array<int, kRows>& leftQuota,
              const std::array<int, kRows>& rightQuota) const {
    if ((row - 1 >= 0 && board[row - 1][col] == ch) ||
        (col + 1 < kCols && board[row][col + 1] == ch) ||
        (row + 1 < kRows && board[row + 1][col] == ch) ||
        (col - 1 >= 0 && board[row][col - 1] == ch)) {
      return false;
    }
    int rowPlus = (ch == '+') ? countRow(board, row, '+') : 0;
    int rowMinus = (ch == '-') ? countRow(board, row, '-') : 0;
    int colPlus = (ch == '+') ? countCol(board, col, '+') : 0;
    int colMinus = (ch == '-') ? countCol(board, col, '-') : 0;
    if (ch == '+') {
      if (topQuota[col] != -1 && colPlus >= topQuota[col]) {
        return false;
      }
      if (leftQuota[row] != -1 && rowPlus >= leftQuota[row]) {
        return false;
      }
    } else {
      if (bottomQuota[col] != -1 && colMinus >= bottomQuota[col]) {
        return false;
      }
      if (rightQuota[row] != -1 && rowMinus >= rightQuota[row]) {
        return false;
      }
    }
    return true;
  }

  int countRow(const Board& board, int row, char ch) const {
    int cnt = 0;
    for (int c = 0; c < kCols; ++c) {
      if (board[row][c] == ch) ++cnt;
    }
    return cnt;
  }
  int countCol(const Board& board, int col, char ch) const {
    int cnt = 0;
    for (int r = 0; r < kRows; ++r) {
      if (board[r][col] == ch) ++cnt;
    }
    return cnt;
  }

  bool validate(const Board& board,
                const std::array<int, kCols>& topQuota,
                const std::array<int, kCols>& bottomQuota,
                const std::array<int, kRows>& leftQuota,
                const std::array<int, kRows>& rightQuota) const {
    for (int c = 0; c < kCols; ++c) {
      if (topQuota[c] != -1 && countCol(board, c, '+') != topQuota[c]) {
        return false;
      }
    }
    for (int r = 0; r < kRows; ++r) {
      if (leftQuota[r] != -1 && countRow(board, r, '+') != leftQuota[r]) {
        return false;
      }
    }
    for (int c = 0; c < kCols; ++c) {
      if (bottomQuota[c] != -1 && countCol(board, c, '-') != bottomQuota[c]) {
        return false;
      }
    }
    for (int r = 0; r < kRows; ++r) {
      if (rightQuota[r] != -1 && countRow(board, r, '-') != rightQuota[r]) {
        return false;
      }
    }
    return true;
  }
};

// Usage example (pseudo):
// Solution::Board rules = { /* fill with 'L','R','T','B' layout */ };
// std::array<int, Solution::kCols> top = {1,-1,-1,2,1,-1};
// ... fill other arrays ...
// Solution sol; auto board = sol.solve(top, bottom, left, right, rules);
Java
// Refactored Java version: Solution class returning a char[][] board.
public class Solution {
  public static final int K_ROWS = 5;
  public static final int K_COLS = 6;

  public char[][] solve(int[] topQuota, int[] bottomQuota, int[] leftQuota, int[] rightQuota, char[][] slotRules) {
    char[][] board = new char[K_ROWS][K_COLS];
    for (int r = 0; r < K_ROWS; ++r) {
      for (int c = 0; c < K_COLS; ++c) {
        board[r][c] = 'X';
      }
    }
    backtrack(board, 0, 0, topQuota, bottomQuota, leftQuota, rightQuota, slotRules);
    return board; // remains 'X' if unsolvable
  }

  private boolean backtrack(char[][] board, int row, int col,
                            int[] topQuota, int[] bottomQuota, int[] leftQuota, int[] rightQuota,
                            char[][] slotRules) {
    if (row >= K_ROWS - 1 && col >= K_COLS - 1) {
      return validate(board, topQuota, bottomQuota, leftQuota, rightQuota);
    }
    if (col >= K_COLS) {
      col = 0;
      ++row;
    }
    if (row >= K_ROWS) {
      return false;
    }
    char cell = slotRules[row][col];
    if (cell == 'R' || cell == 'B') {
      return backtrack(board, row, col + 1, topQuota, bottomQuota, leftQuota, rightQuota, slotRules);
    }

    if (cell == 'L' && col + 1 < K_COLS && slotRules[row][col + 1] == 'R') {
      tryAssign(board, row, col, row, col + 1, '+', '-', topQuota, bottomQuota, leftQuota, rightQuota, slotRules);
      tryAssign(board, row, col, row, col + 1, '-', '+', topQuota, bottomQuota, leftQuota, rightQuota, slotRules);
    }
    if (cell == 'T' && row + 1 < K_ROWS && slotRules[row + 1][col] == 'B') {
      tryAssign(board, row, col, row + 1, col, '+', '-', topQuota, bottomQuota, leftQuota, rightQuota, slotRules);
      tryAssign(board, row, col, row + 1, col, '-', '+', topQuota, bottomQuota, leftQuota, rightQuota, slotRules);
    }
    return backtrack(board, row, col + 1, topQuota, bottomQuota, leftQuota, rightQuota, slotRules);
  }

  private void tryAssign(char[][] board, int r1, int c1, int r2, int c2,
                         char ch1, char ch2,
                         int[] topQuota, int[] bottomQuota, int[] leftQuota, int[] rightQuota,
                         char[][] slotRules) {
    if (!isSafe(board, r1, c1, ch1, topQuota, bottomQuota, leftQuota, rightQuota) ||
        !isSafe(board, r2, c2, ch2, topQuota, bottomQuota, leftQuota, rightQuota)) {
      return;
    }
    board[r1][c1] = ch1;
    board[r2][c2] = ch2;
    if (backtrack(board, r1, c1 + 1, topQuota, bottomQuota, leftQuota, rightQuota, slotRules)) {
      return;
    }
    board[r1][c1] = 'X';
    board[r2][c2] = 'X';
  }

  private boolean isSafe(char[][] board, int row, int col, char ch,
                         int[] topQuota, int[] bottomQuota, int[] leftQuota, int[] rightQuota) {
    if ((row - 1 >= 0 && board[row - 1][col] == ch) ||
        (col + 1 < K_COLS && board[row][col + 1] == ch) ||
        (row + 1 < K_ROWS && board[row + 1][col] == ch) ||
        (col - 1 >= 0 && board[row][col - 1] == ch)) {
      return false;
    }
    int rowPlus = (ch == '+') ? countRow(board, row, '+') : 0;
    int rowMinus = (ch == '-') ? countRow(board, row, '-') : 0;
    int colPlus = (ch == '+') ? countCol(board, col, '+') : 0;
    int colMinus = (ch == '-') ? countCol(board, col, '-') : 0;
    if (ch == '+') {
      if (topQuota[col] != -1 && colPlus >= topQuota[col]) {
        return false;
      }
      if (leftQuota[row] != -1 && rowPlus >= leftQuota[row]) {
        return false;
      }
    } else {
      if (bottomQuota[col] != -1 && colMinus >= bottomQuota[col]) {
        return false;
      }
      if (rightQuota[row] != -1 && rowMinus >= rightQuota[row]) {
        return false;
      }
    }
    return true;
  }

  private int countRow(char[][] board, int row, char ch) {
    int cnt = 0;
    for (int c = 0; c < K_COLS; ++c) {
      if (board[row][c] == ch) ++cnt;
    }
    return cnt;
  }
  private int countCol(char[][] board, int col, char ch) {
    int cnt = 0;
    for (int r = 0; r < K_ROWS; ++r) {
      if (board[r][col] == ch) ++cnt;
    }
    return cnt;
  }

  private boolean validate(char[][] board, int[] topQuota, int[] bottomQuota, int[] leftQuota, int[] rightQuota) {
    for (int c = 0; c < K_COLS; ++c) {
      if (topQuota[c] != -1 && countCol(board, c, '+') != topQuota[c]) {
        return false;
      }
    }
    for (int r = 0; r < K_ROWS; ++r) {
      if (leftQuota[r] != -1 && countRow(board, r, '+') != leftQuota[r]) {
        return false;
      }
    }
    for (int c = 0; c < K_COLS; ++c) {
      if (bottomQuota[c] != -1 && countCol(board, c, '-') != bottomQuota[c]) {
        return false;
      }
    }
    for (int r = 0; r < K_ROWS; ++r) {
      if (rightQuota[r] != -1 && countRow(board, r, '-') != rightQuota[r]) {
        return false;
      }
    }
    return true;
  }
}
Python
from typing import List

class Solution:
  k_rows = 5
  k_cols = 6

  def solve(self, top_quota: List[int], bottom_quota: List[int], left_quota: List[int], right_quota: List[int], slot_rules: List[List[str]]) -> List[List[str]]:
    board = [['X' for _ in range(self.k_cols)] for _ in range(self.k_rows)]
    self.backtrack(board, 0, 0, top_quota, bottom_quota, left_quota, right_quota, slot_rules)
    return board

  def backtrack(self, board: List[List[str]], row: int, col: int, top_quota: List[int], bottom_quota: List[int], left_quota: List[int], right_quota: List[int], slot_rules: List[List[str]]) -> bool:
    if row >= self.k_rows - 1 and col >= self.k_cols - 1:
      return self.validate(board, top_quota, bottom_quota, left_quota, right_quota)
    if col >= self.k_cols:
      col = 0
      row += 1
    if row >= self.k_rows:
      return False
    cell = slot_rules[row][col]
    if cell in ('R', 'B'):
      return self.backtrack(board, row, col + 1, top_quota, bottom_quota, left_quota, right_quota, slot_rules)

    if cell == 'L' and col + 1 < self.k_cols and slot_rules[row][col + 1] == 'R':
      if self.try_assign(board, row, col, row, col + 1, '+', '-', top_quota, bottom_quota, left_quota, right_quota, slot_rules):
        return True
      if self.try_assign(board, row, col, row, col + 1, '-', '+', top_quota, bottom_quota, left_quota, right_quota, slot_rules):
        return True
    if cell == 'T' and row + 1 < self.k_rows and slot_rules[row + 1][col] == 'B':
      if self.try_assign(board, row, col, row + 1, col, '+', '-', top_quota, bottom_quota, left_quota, right_quota, slot_rules):
        return True
      if self.try_assign(board, row, col, row + 1, col, '-', '+', top_quota, bottom_quota, left_quota, right_quota, slot_rules):
        return True
    return self.backtrack(board, row, col + 1, top_quota, bottom_quota, left_quota, right_quota, slot_rules)

  def try_assign(self, board, r1, c1, r2, c2, ch1, ch2, top_quota, bottom_quota, left_quota, right_quota, slot_rules):
    if not self.is_safe(board, r1, c1, ch1, top_quota, bottom_quota, left_quota, right_quota) or not self.is_safe(board, r2, c2, ch2, top_quota, bottom_quota, left_quota, right_quota):
      return False
    board[r1][c1] = ch1
    board[r2][c2] = ch2
    if self.backtrack(board, r1, c1 + 1, top_quota, bottom_quota, left_quota, right_quota, slot_rules):
      return True
    board[r1][c1] = 'X'
    board[r2][c2] = 'X'
    return False

  def is_safe(self, board, row, col, ch, top_quota, bottom_quota, left_quota, right_quota):
    if (row - 1 >= 0 and board[row - 1][col] == ch) or (col + 1 < self.k_cols and board[row][col + 1] == ch) or (row + 1 < self.k_rows and board[row + 1][col] == ch) or (col - 1 >= 0 and board[row][col - 1] == ch):
      return False
    row_plus = self.count_row(board, row, '+') if ch == '+' else 0
    row_minus = self.count_row(board, row, '-') if ch == '-' else 0
    col_plus = self.count_col(board, col, '+') if ch == '+' else 0
    col_minus = self.count_col(board, col, '-') if ch == '-' else 0
    if ch == '+':
      if top_quota[col] != -1 and col_plus >= top_quota[col]:
        return False
      if left_quota[row] != -1 and row_plus >= left_quota[row]:
        return False
    else:
      if bottom_quota[col] != -1 and col_minus >= bottom_quota[col]:
        return False
      if right_quota[row] != -1 and row_minus >= right_quota[row]:
        return False
    return True

  def count_row(self, board, row, ch):
    return sum(1 for c in range(self.k_cols) if board[row][c] == ch)

  def count_col(self, board, col, ch):
    return sum(1 for r in range(self.k_rows) if board[r][col] == ch)

  def validate(self, board, top_quota, bottom_quota, left_quota, right_quota):
    for c in range(self.k_cols):
      if top_quota[c] != -1 and self.count_col(board, c, '+') != top_quota[c]:
        return False
    for r in range(self.k_rows):
      if left_quota[r] != -1 and self.count_row(board, r, '+') != left_quota[r]:
        return False
    for c in range(self.k_cols):
      if bottom_quota[c] != -1 and self.count_col(board, c, '-') != bottom_quota[c]:
        return False
    for r in range(self.k_rows):
      if right_quota[r] != -1 and self.count_row(board, r, '-') != right_quota[r]:
        return False
    return True

Complexity

  • ⏰ Time complexity: O(3^S) in the worst case where S is the number of domino slots (each slot has up to 3 choices). Pruning (quota feasibility + adjacency + early overfill) dramatically reduces search; practical boards solve quickly.
  • 🧺 Space complexity: O(S + M*N) – recursion depth up to number of slots plus board & counter storage.

Comments
